Plain water Dust Suppression System

Introduction

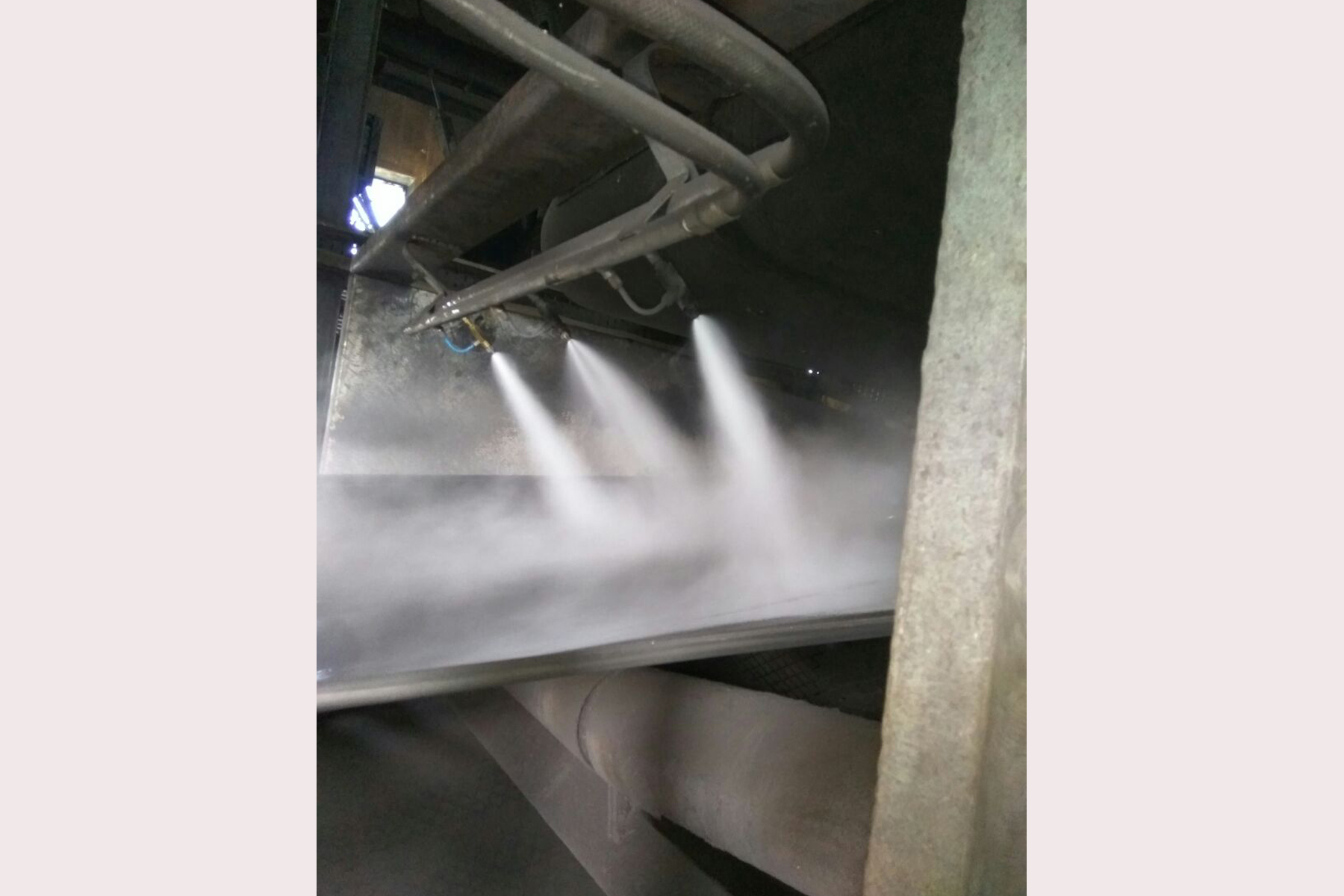

The main principle of the System is to wet the material by a fine spray of Water so that the dust particles are made to impinge and adhere to the water droplets. The material is thus kept damp/wet, immobilizing the dust particles preventing them from becoming air borne. The system offered by us has the following salient features as compared to other comparable systems:


Application Field :-

All hopper, wagon tippler, Truck tippler, etc and open area including conveyor transfer point under open enclosure.

  • OPERATING PRESSURE
  • The System offered by us operates at a pressure of 4.5-5.0 Bar as compared to other available Systems operating at 3.5-4.0 Bar. The high pressure System ensures superfine spray, enabling a greater penetration and effective particle encapsulation and consequently better Dust Suppression.

  • NOZZLES
  • The used Stainless Steel Nozzles have a unique spirally milled core, which produces a high velocity spinning action that gives a solid cone distribution of fine atomized spray.

  • FILTRATION SYSTEM
  • For trouble free operation of the system and to ensure fine and consistent quality of spray, the system offered by us has two stages of filtration.
    Stage–I - A Duplex Strainer is provided in the inlet service water line at the Pump House to remove suspended particles exceeding 100 microns.
    Stage–II- Each Flow Activation Station (Solenoid Box) is provided with a Y-Strainer to filter any particles that may be deposited in the pipeline between the Pump House and the Flow Activation Stations.
